End terminal specification

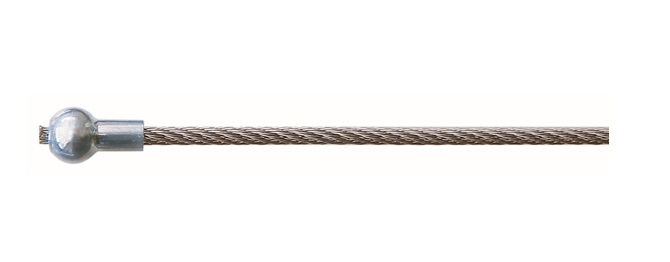

Ball Shank terminal (MS20664)
Specification
| No. | Wire Rope dia. | As | Bs | Cs |
|---|---|---|---|---|
| (Diameter) | (Diameter) | (for reference) | ||
| C2 | 1/16（φ1.5～1.59） | 2.8 | 4.9 | 4.0 |
| C3 | 3/32（φ2.38～2.5） | 3.6 | 6.4 | 5.9 |
| C4 | 1/8（φ3.18） | 4.8 | 8.0 | 8.0 |
| C5 | 5/32（φ4.0） | 5.6 | 9.6 | 9.9 |
| C6 | 3/16（φ4.76） | 6.5 | 11.2 | 11.9 |
| C8 | 1/4（φ6.0～6.35） | 8.8 | 14.4 | 15.9 |
| C10 | 5/16（φ8.0） | 10.5 | 17.6 | 20.7 |
mm / stainless
( MIL standard )
※Above size ( As, Bs and Cs ) are just after press process
