End terminal specification

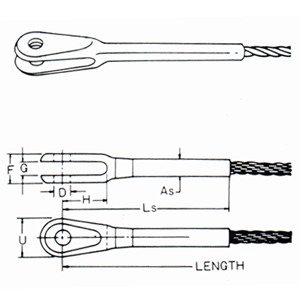

Fork terminal (MS20667)
Specification
| No. | Wire Rope dia. | D | F | G | H | U | As | Ls |
|---|---|---|---|---|---|---|---|---|
| (Diameter) | +0.25 /-0.12 |
(Diameter) | (for reference) | |||||
| 2 | 1/16（φ1.59） | 4.8 | 5.5 | 2.4 | 12.7 | 8.7 | 3.5 | 44.5 |
| 3 | 3/32（φ2.38） | 4.8 | 6.5 | 2.7 | 17 | 11.1 | 4.8 | 52.3 |
| 4 | 1/8（φ3.18） | 4.8 | 9.7 | 5.0 | 18.7 | 13.9 | 5.6 | 66.3 |
| 5 | 5/32（φ4.0） | 6.4 | 10.3 | 5.1 | 20.3 | 17.5 | 6.4 | 76.2 |
| 6 | 3/16（φ4.76） | 8.0 | 13.8 | 6.6 | 22.4 | 19.8 | 8.0 | 82.3 |
| 7 | 7/32（φ5.56） | 8.0 | 15.9 | 7.5 | 24.6 | 23.0 | 9.5 | 95.0 |
| 8 | 1/4（φ6.35） | 9.5 | 17.5 | 8.0 | 27.2 | 24.6 | 11.1 | 104.1 |
| 9 | 9/32（φ7.14） | 11.1 | 18.3 | 8.3 | 29.7 | 29.4 | 12.7 | 113.8 |
| 10 | 5/16（φ8.0） | 11.1 | 19.4 | 8.8 | 32.2 | 32.1 | 14.3 | 123.4 |
| 12 | 3/8（φ9.53） | 12.7 | 21.1 | 9.7 | 38.7 | 38.1 | 15.9 | 145.8 |
mm / stainless
※Above size ( G, H and U ) are just after press process
