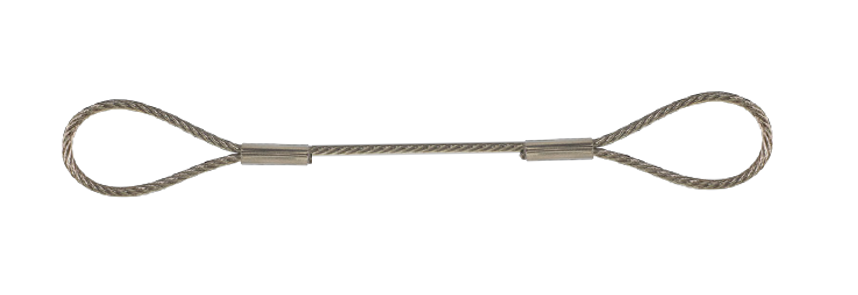

Falling prevention wire / Safety wire
assembled with SUS eight shape terminal
Specification
| Product No. | Wire Rope dia. | Material | A | B | L | Shape |
|---|---|---|---|---|---|---|
| SEL-071 | φ0.54～0.63 | stainless | 1.2 | 2.2 | 5.0 | eight |
| SEL-104 | φ1.0 | 〃 | 2.3 | 4.0 | 4.0 | 〃 |
| SEL-107 | φ0.72～1.0 | 〃 | 2.3 | 4.0 | 7.0 | 〃 |
| SEL-150 | φ1.5 | 〃 | 2.8 | 4.8 | 10.0 | 〃 |
| SEL-200 | φ2.0 | 〃 | 3.4 | 6.0 | 13.0 | 〃 |
| SEL-250 | φ2.5 | 〃 | 3.9 | 6.7 | 13.0 | 〃 |
| SEL-300 | φ3～3.18 | 〃 | 4.6 | 8.2 | 15.0 | 〃 |
mm
※Above size ( A, B and L ) are just before press process
